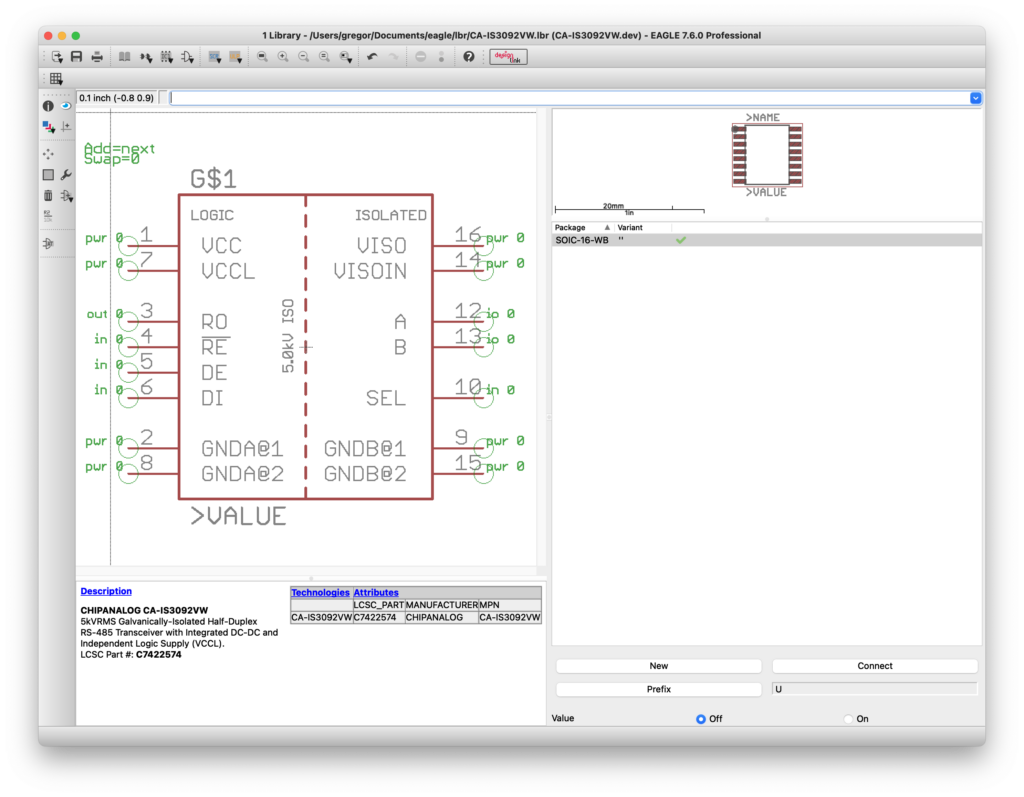

The Chipanalog CA-IS3092VW is a cost-effective, 5kV isolated RS485 transceiver with integrated power supply. Since there was no EDA library available (e.g. on SnapEDA), I had Gemini create it for me and double-checked it (which is surprisingly effective!). Maybe someone else might be interested as well. Should also work for the Chipanalog CA-IS3092W (pin 7 = nc). Don’t forget to connect pin 16 and 14 on the PCB to power the isolated side. Not production-proven, use at your own risk!
